HydroMetrics GW50™ Portable Optical Nitrate Meter for Field Use
HydroMetrics GW50™ Portable Optical Nitrate Meter for Field Use
Regular price
$9,850.00 USD
Regular price
Sale price
$9,850.00 USD
Unit price
/
per
Couldn't load pickup availability

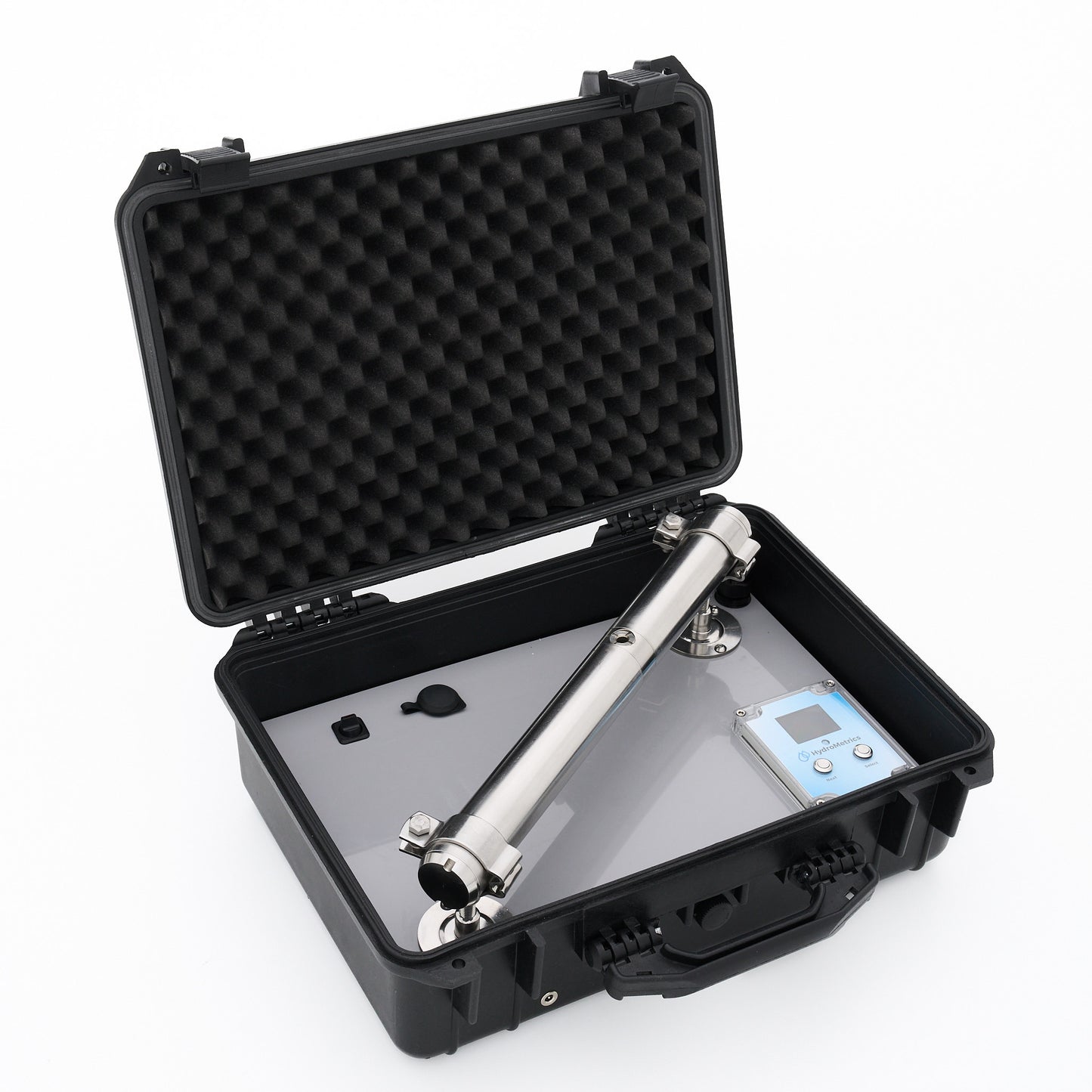

The Portable HydroMetrics GW50™ Optical Nitrate Sensor is a robust cost-effective sensor for self-contained field use that uses UV-C optical technology to accurately measure the concentration of total nitrates in water samples. Our "Lab in a Case" allows anyone to accurately measure total nitrates instantly without expensive lab testing.
The Portable HydroMetrics GW50™ utilises advanced low-power UV-C optical sensor technology, a 12v LiFePO4 power pack and rugged on-board processing to offer full portability in a small, lightweight case.
Common Uses:
- Drinking water and stock water monitoring.
- Instant measurement of total nitrates at a site with on-board data logging.
- Building a better understanding of the impact of environmental factors through regular, instant measurement in real-time to enhance community engagement.
Comes with:

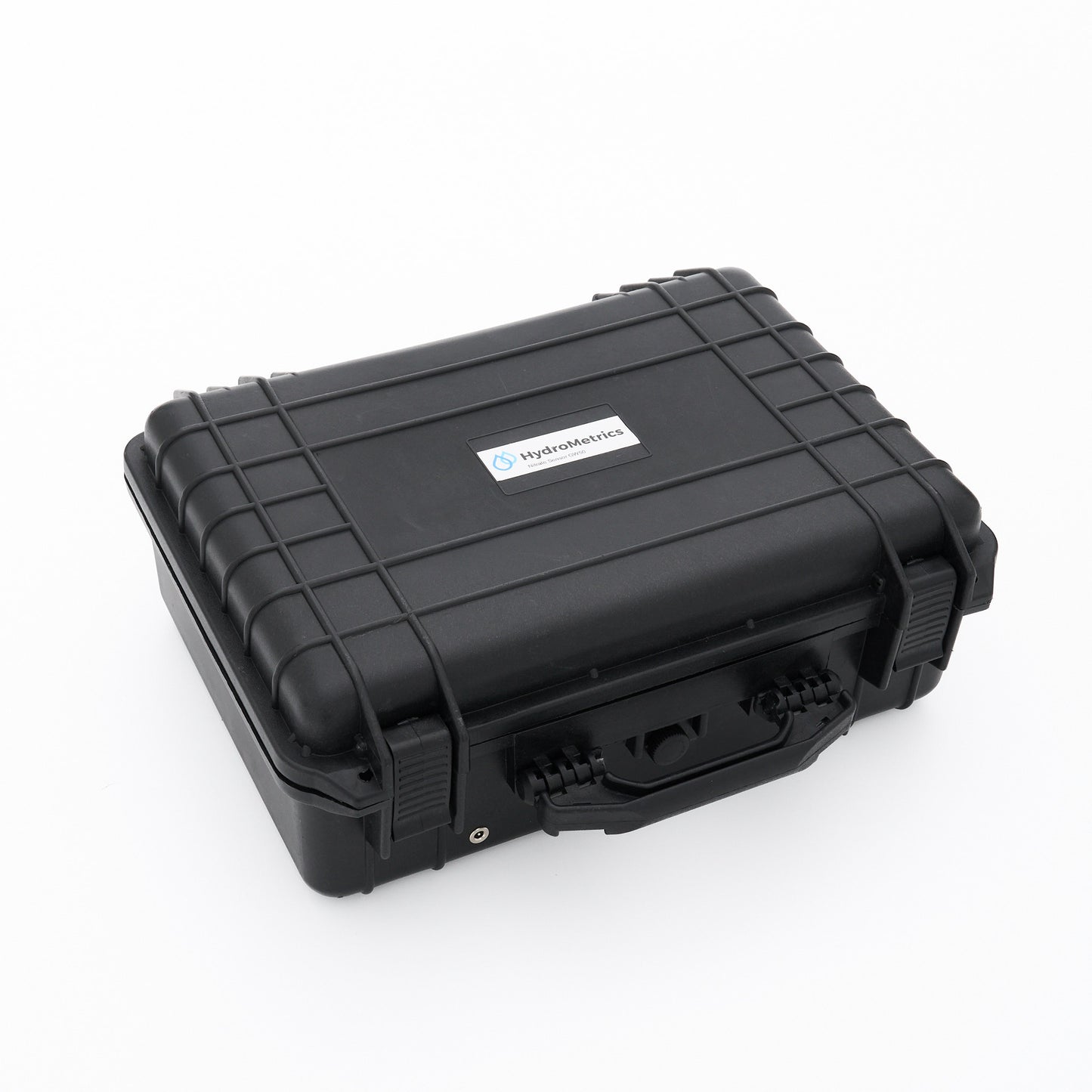

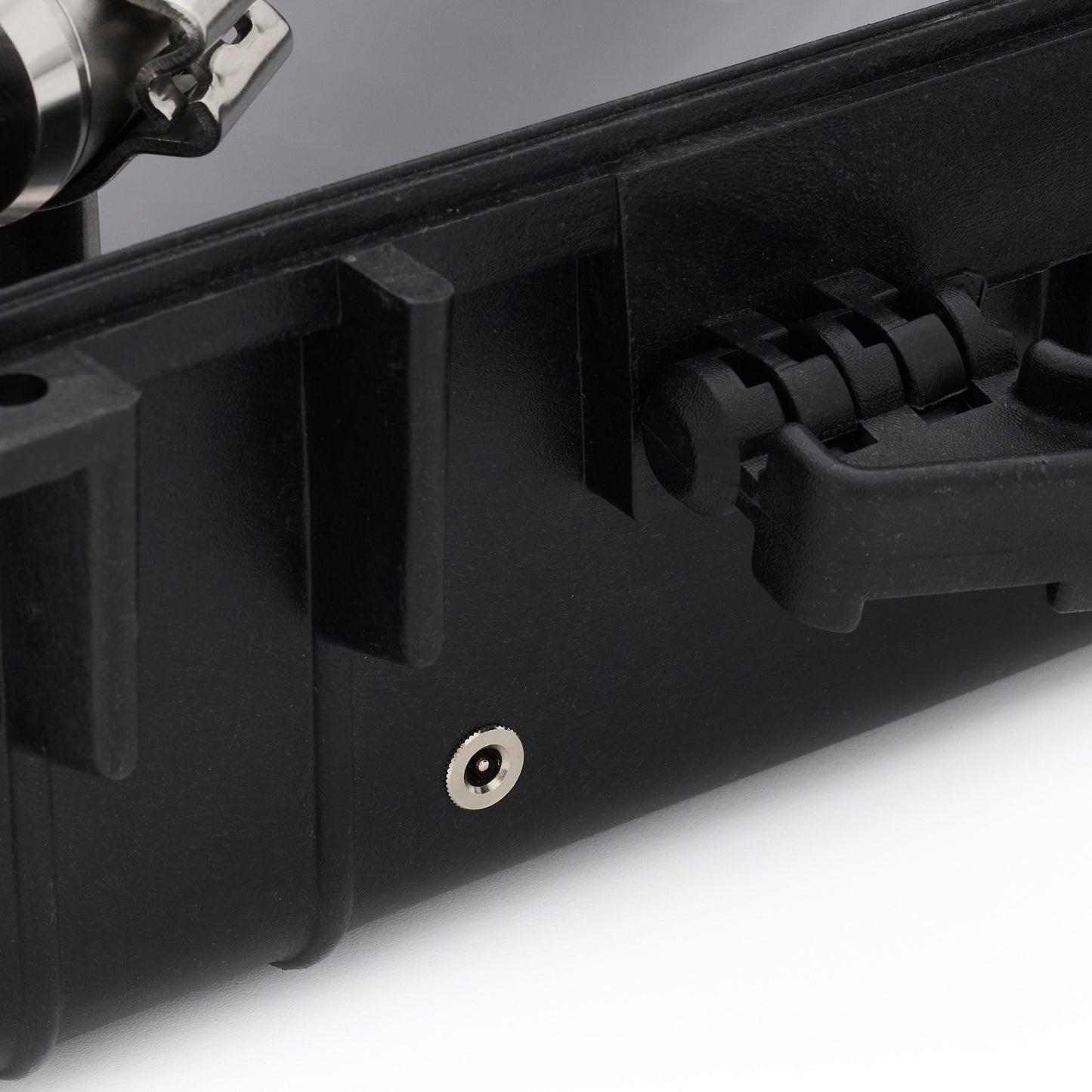

- Case

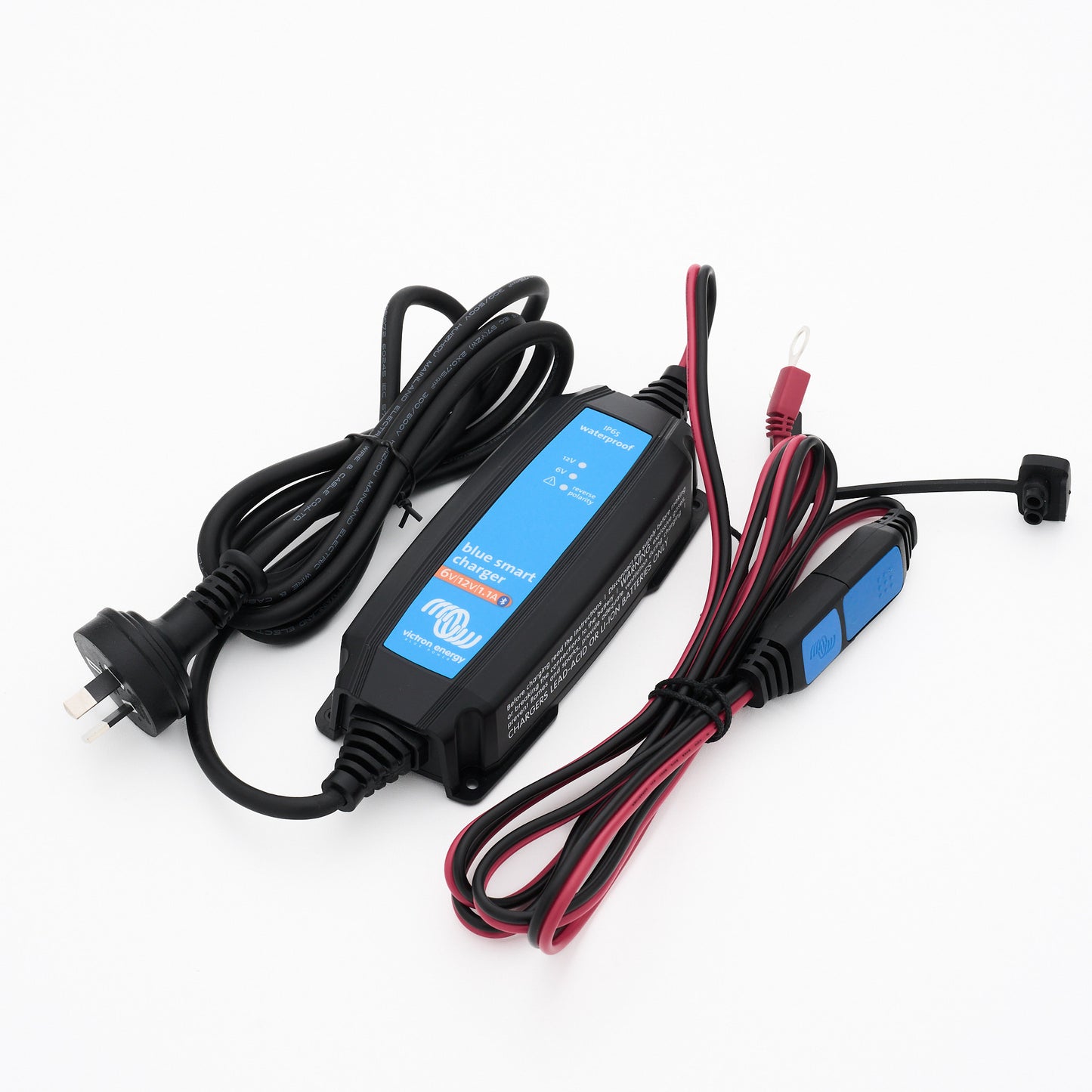

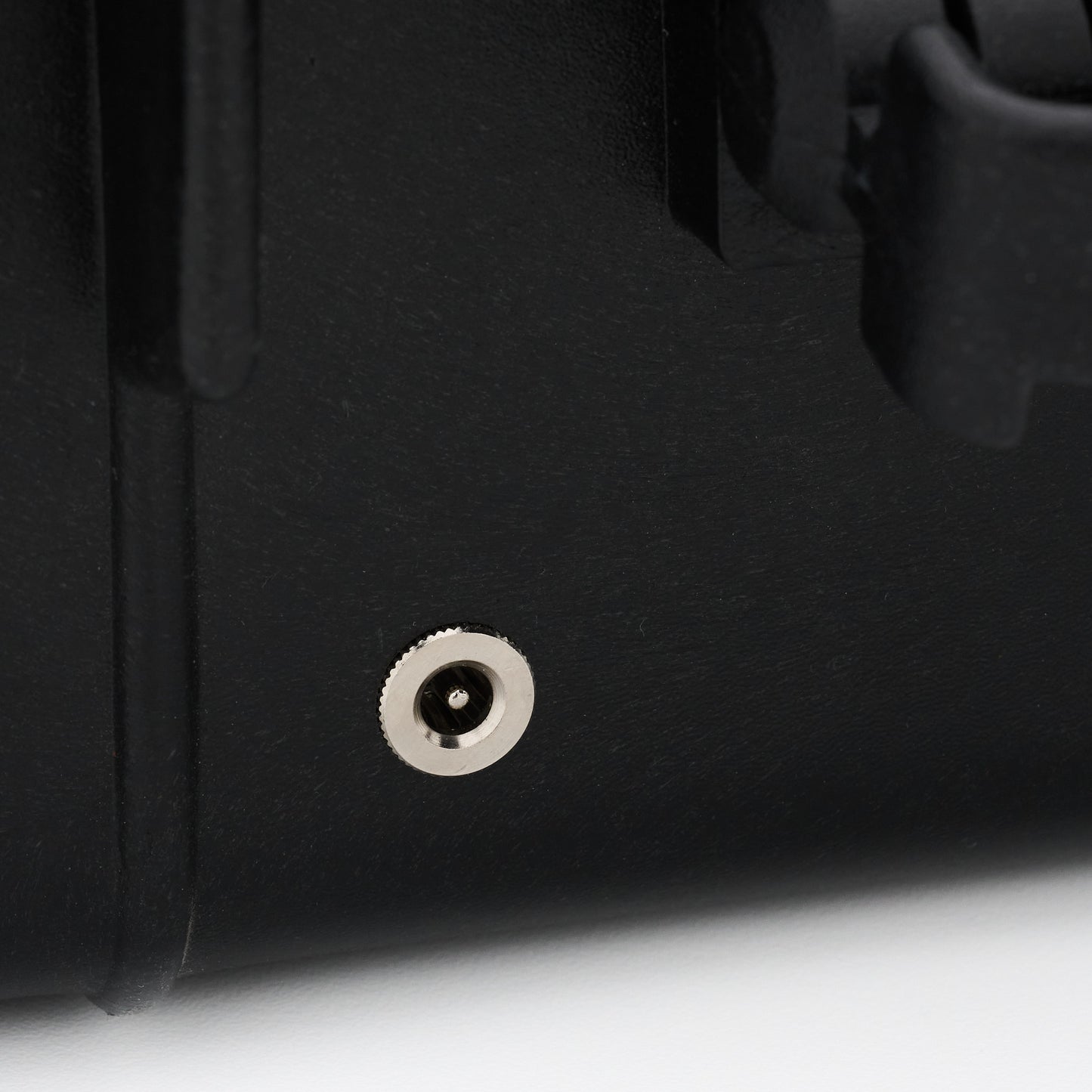

- Charging unit

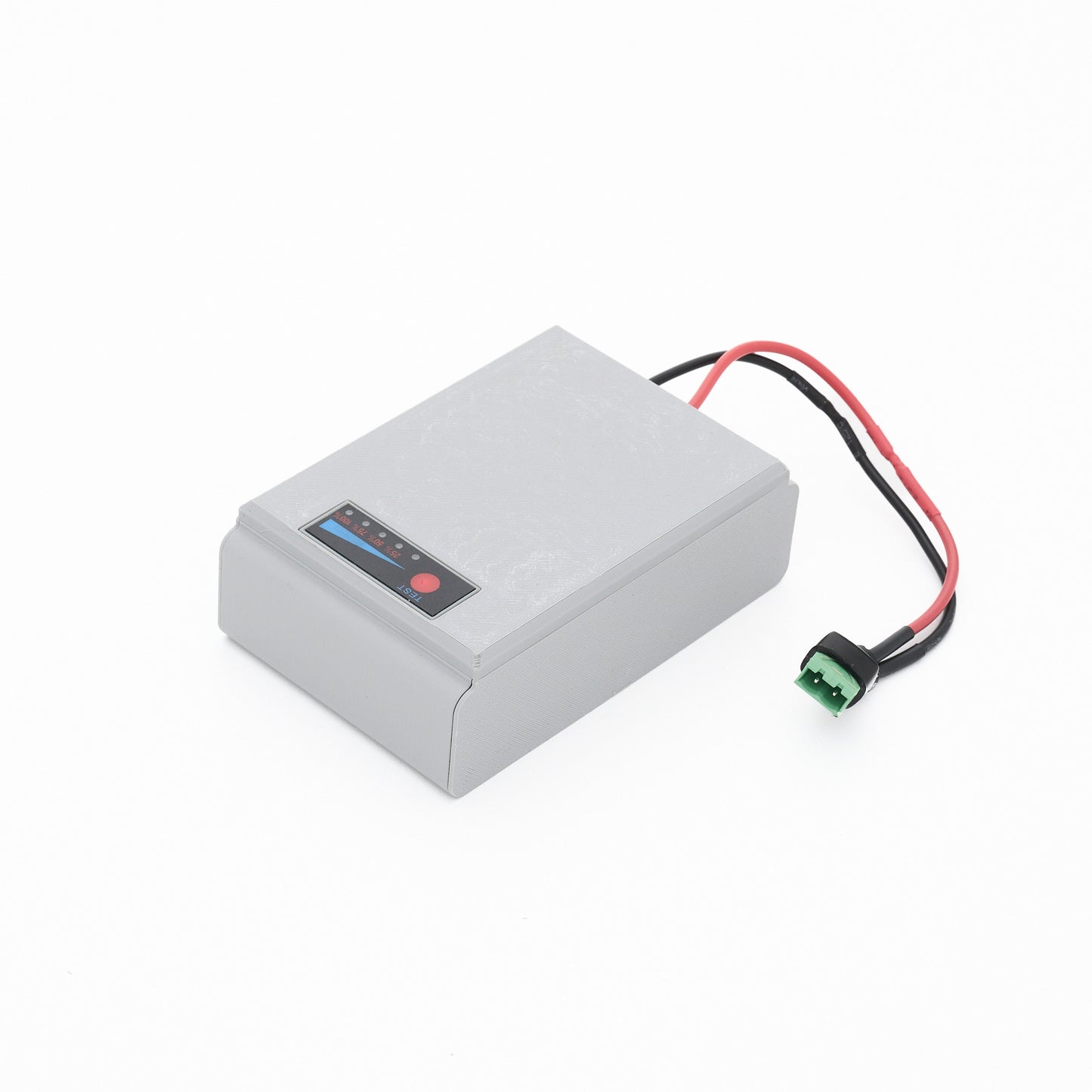

- 12v LiFePO4 battery pack with charge indicator

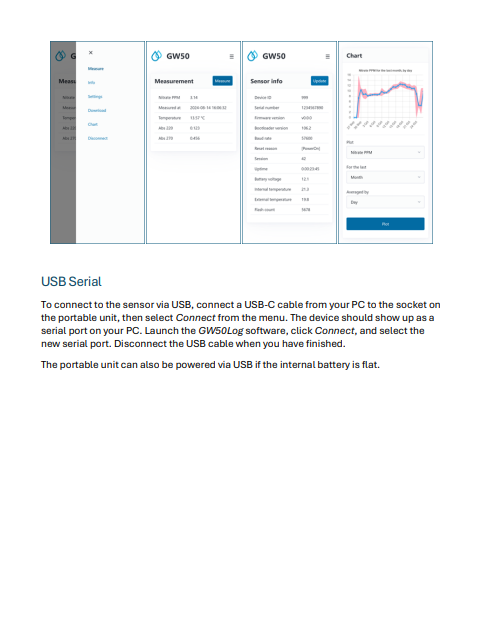

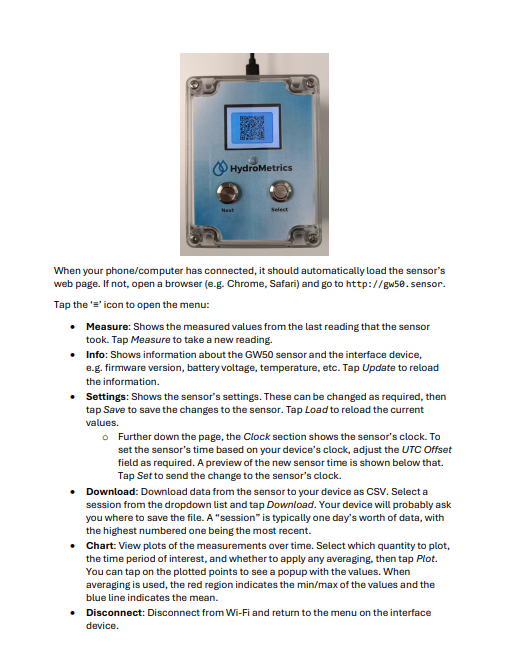

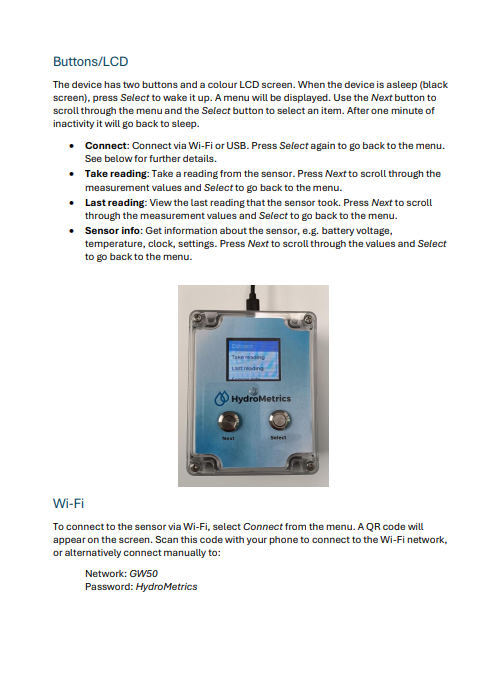

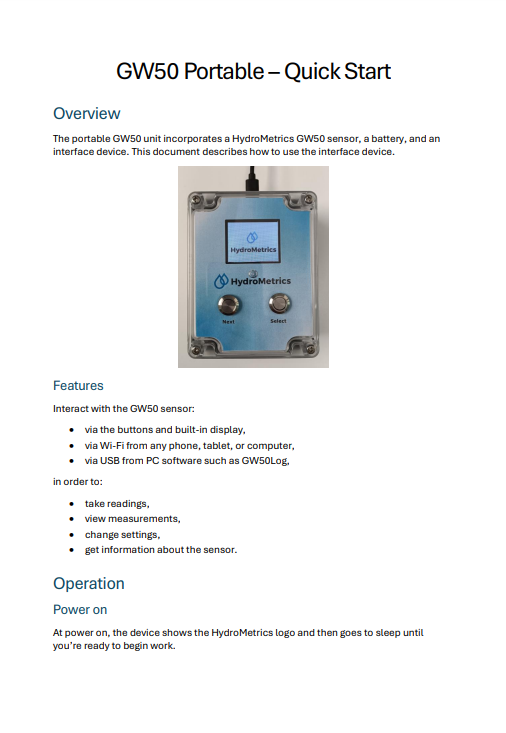

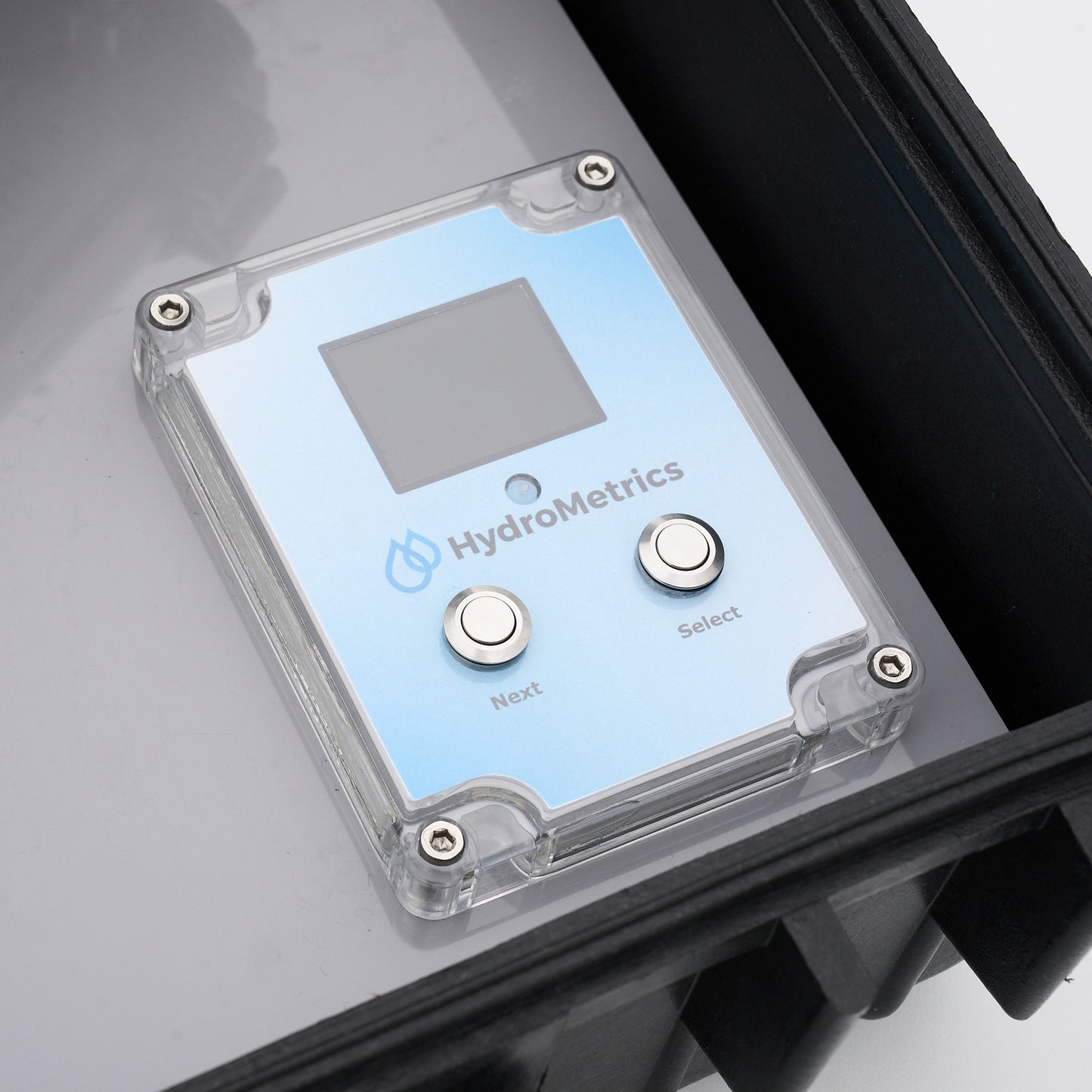

- Screen and control unit with mobile / tablet data access functionality

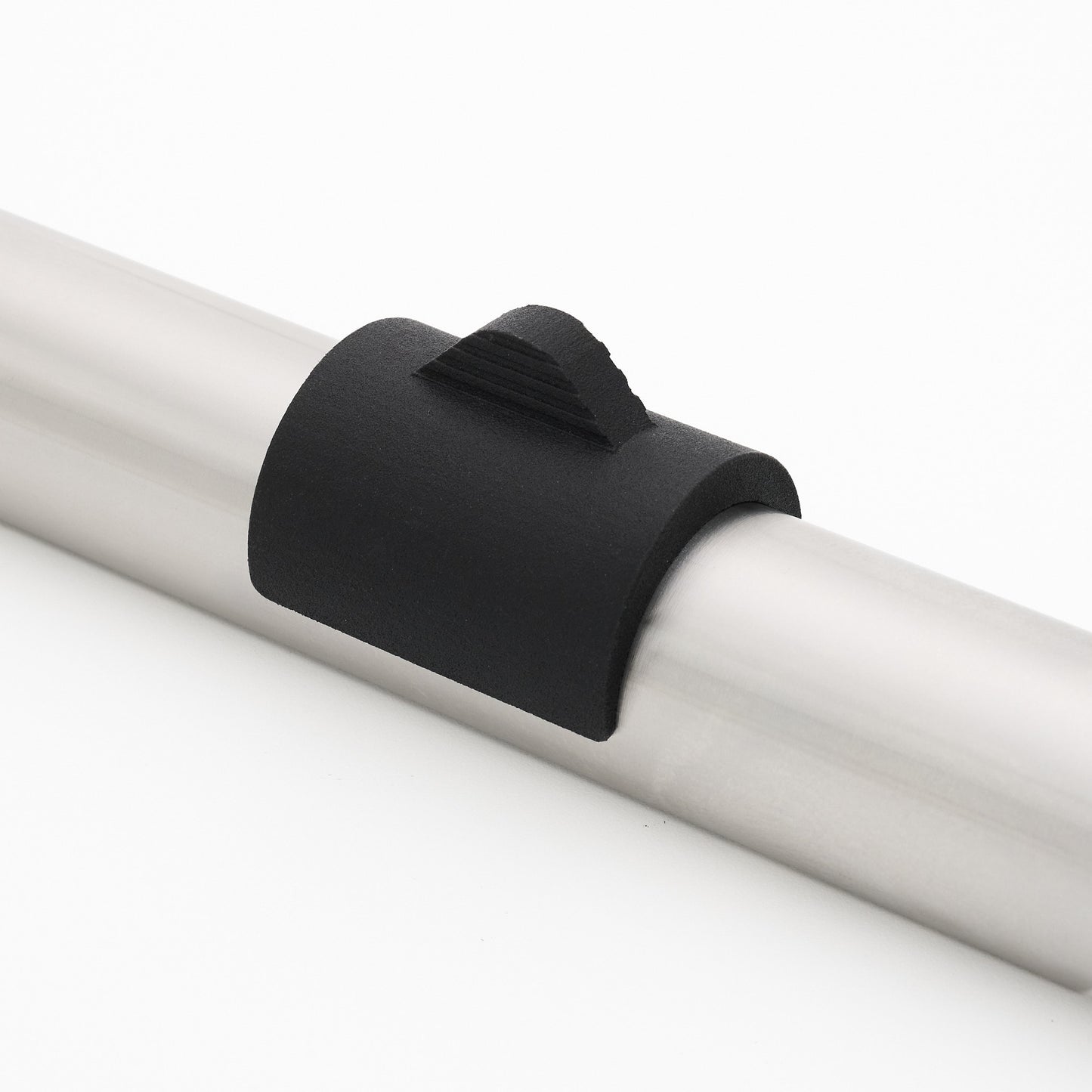

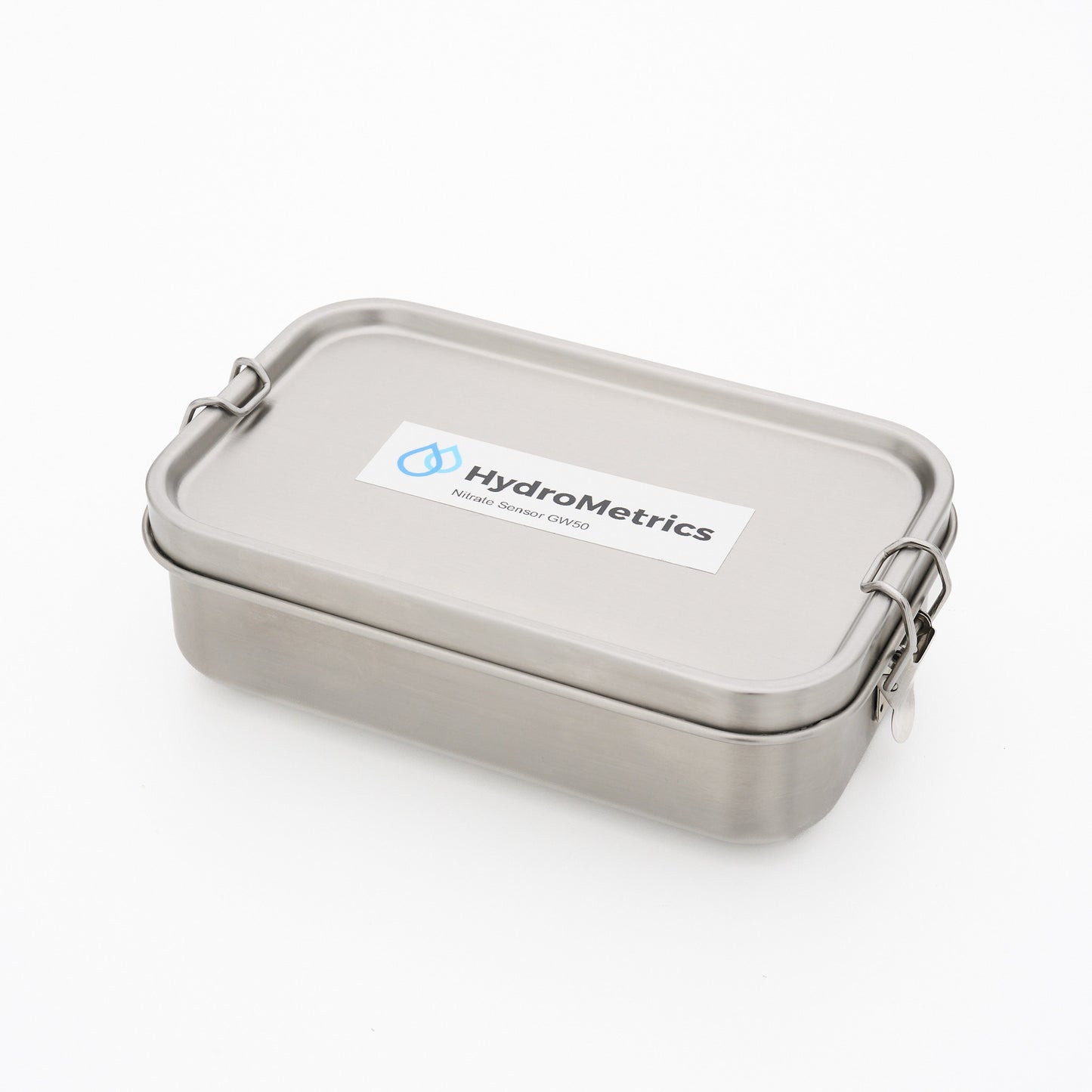

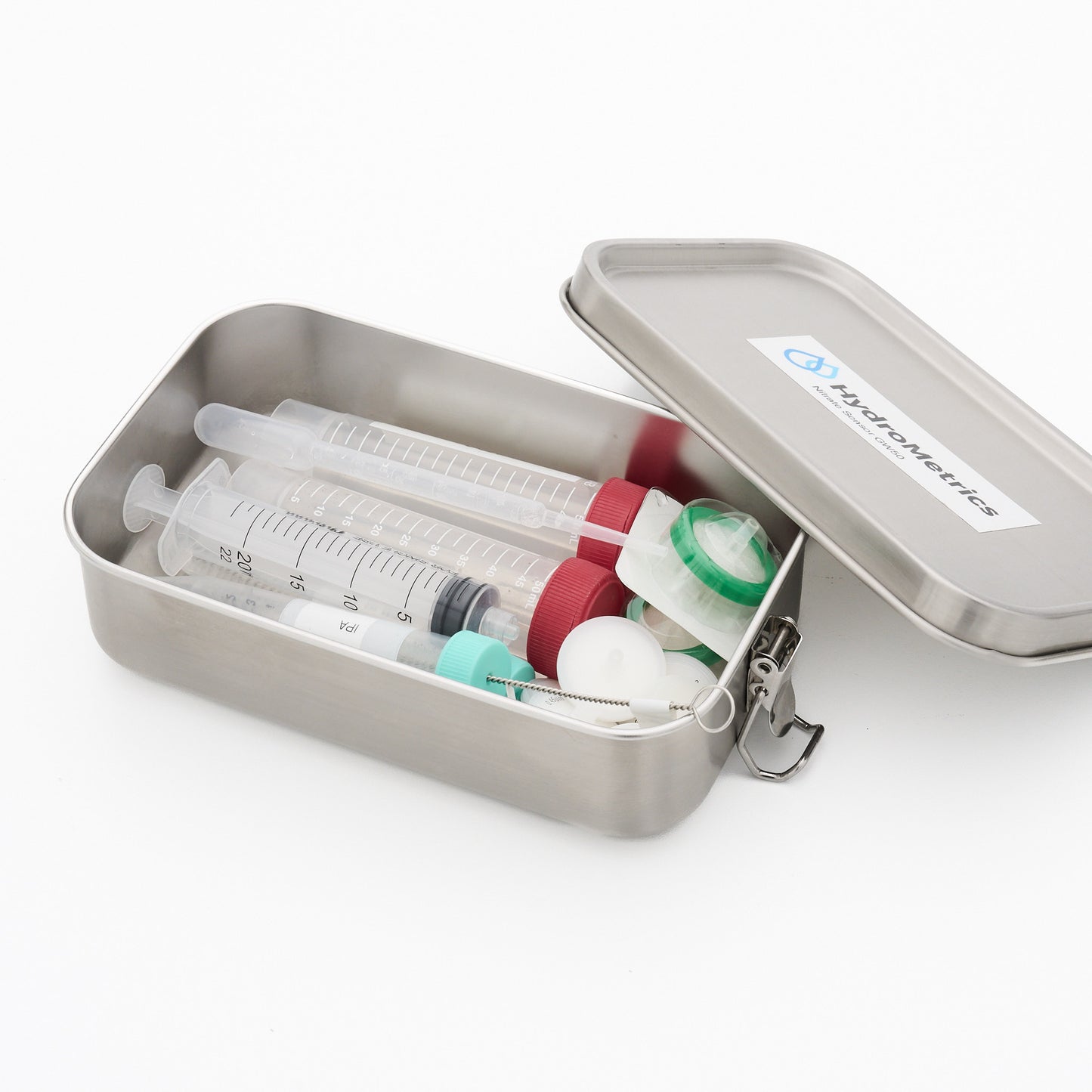

- Accessory kit and UV cell safety cover
Specifications
- Measurement technology (light source): Xenon Flash
- Measurement principle: UV Absorbance

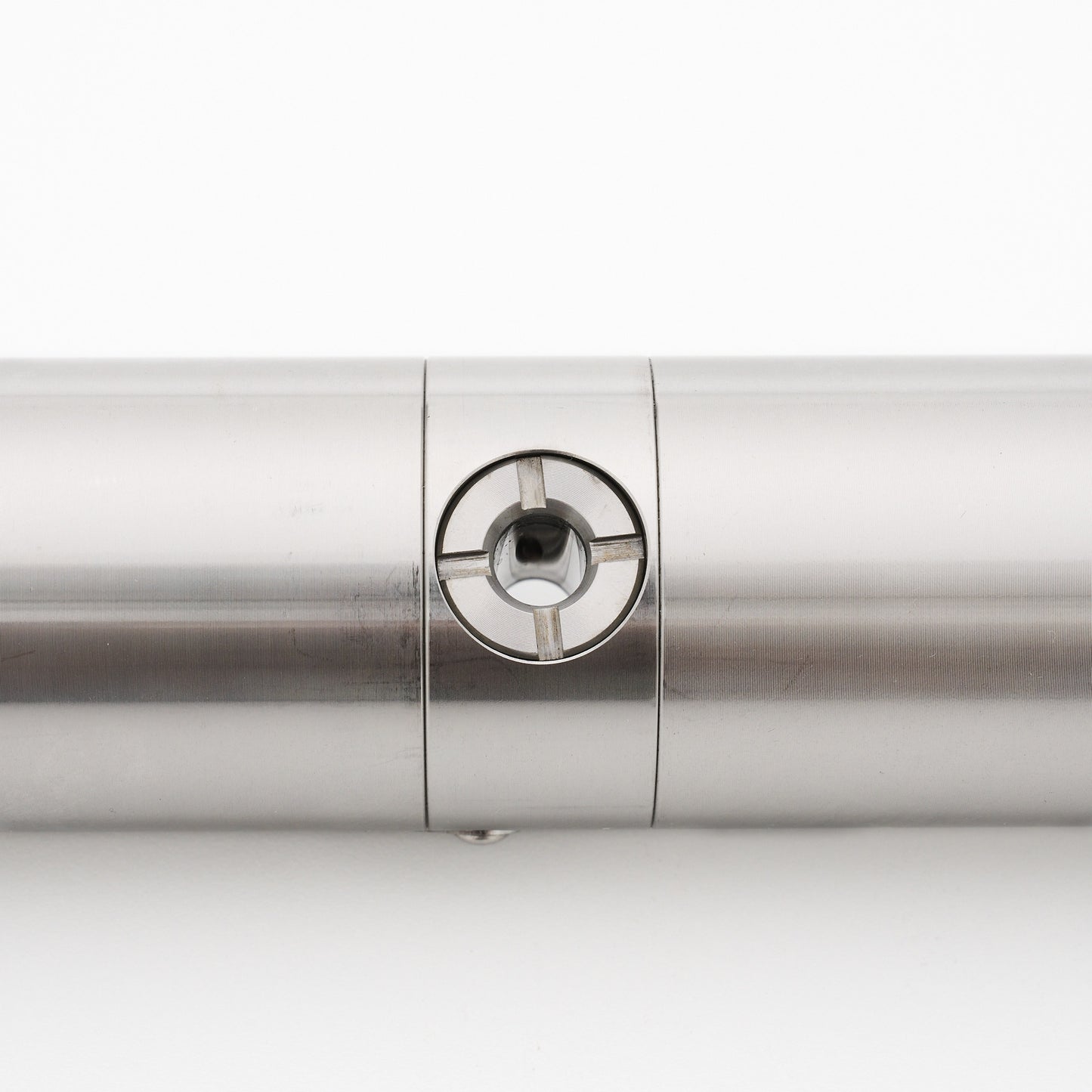

- Measurement cell: 8 mm Parameter NO3-N
- Measurement range: 0 – 50 mg/L (without measurement cell alteration)
- Measurement accuracy: +/- 5% +0.3 mg N/L (against standards)
- Turbidity compensation: Yes
- Data logger: 16 GB internal storage Measurement Interval 1 minute or greater

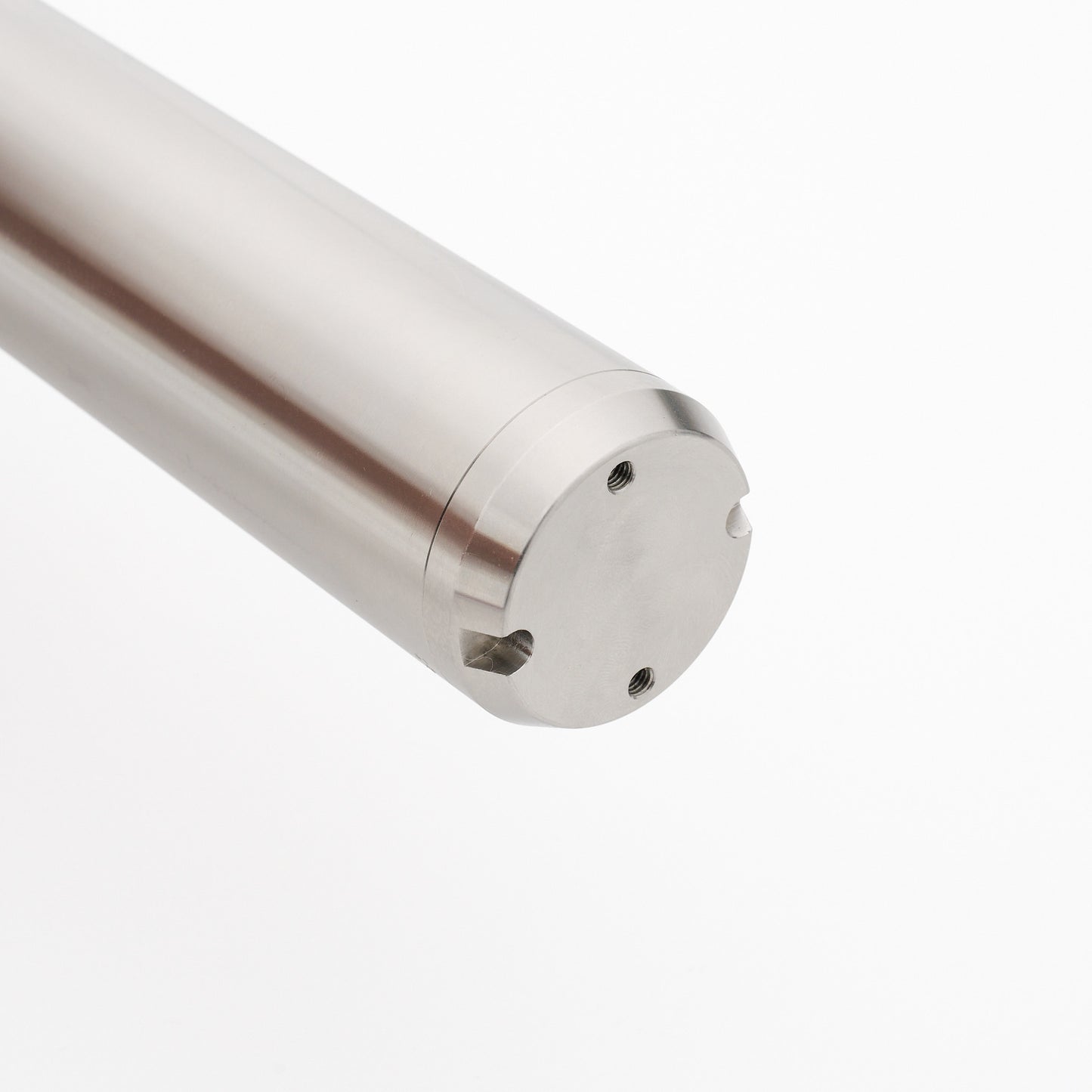

- Housing material: 316 stainless steel + Case
- Sensor Dimensions: 49 mm diameter x 700 mm length
- Weight: 5 kg incl consumables

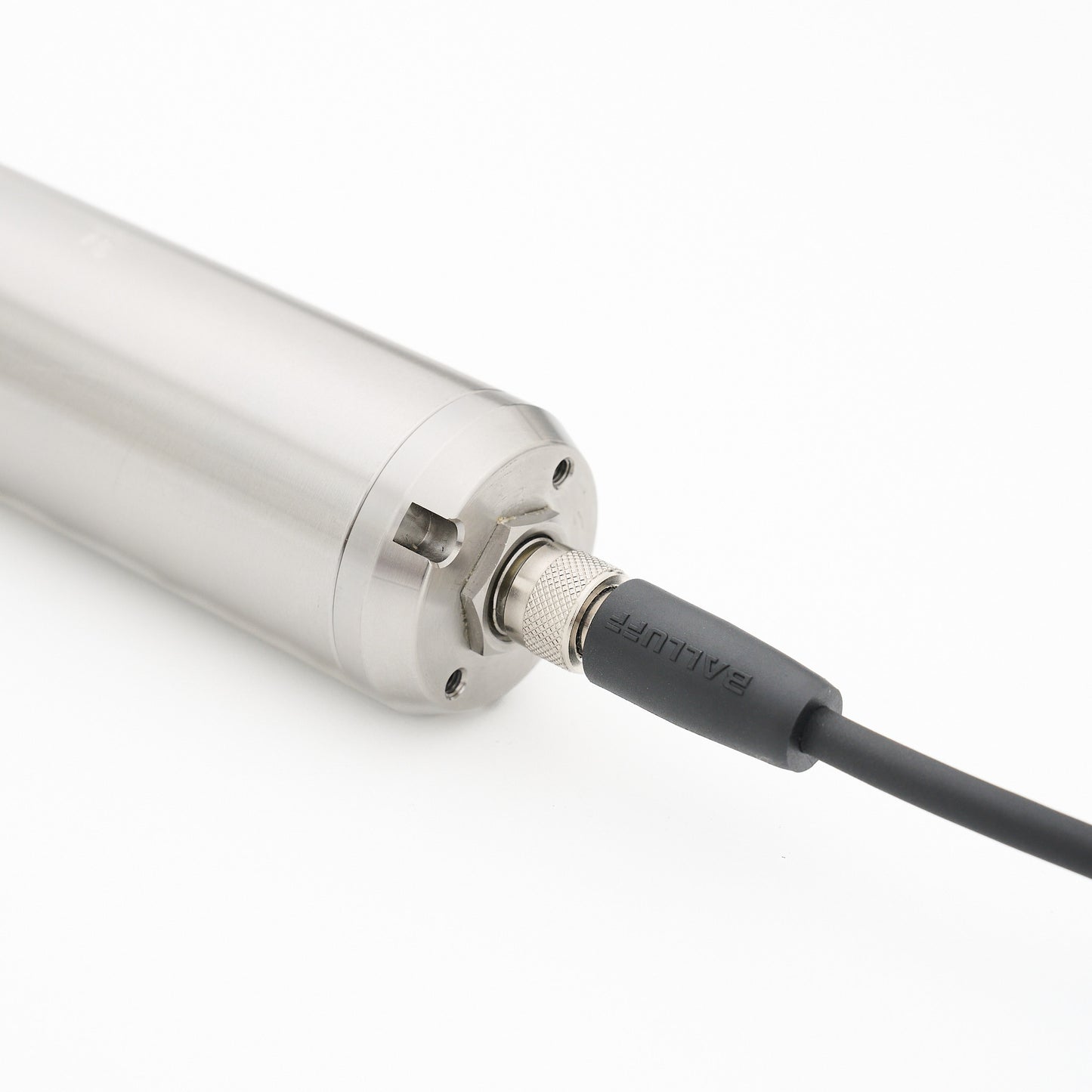

- Sensor Interface: SDI-12 / RS-232 / Modbus
- Sensor power consumption: Below 100 mW
- Warranty: 1 year, back to base
- Battery Pack: 12v LiFePO4 + charging unit & cable
